Ingcool 7 inch Touchscreen Display for Raspberry Pi 7″ HDMI LCD 1024×600 IPS-scherm Monitor voor Raspberry Pi 4B / 3B + / A + / B / 2B / B + / A + / Zero W, Ondersteuning voor Windows 10/8.1/8/ 7

Introduction

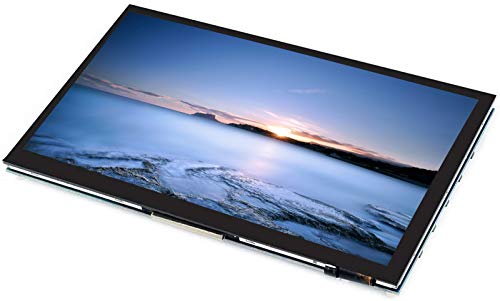

Ingcool 7-inch Capacitive Touch Screen LCD, IPS Display, 1024×600 resolution,HDMI interface,supports various systems.It supports Raspberry Pi, Jetson nano DeveloperKit, and can also be used as a computer monitor.

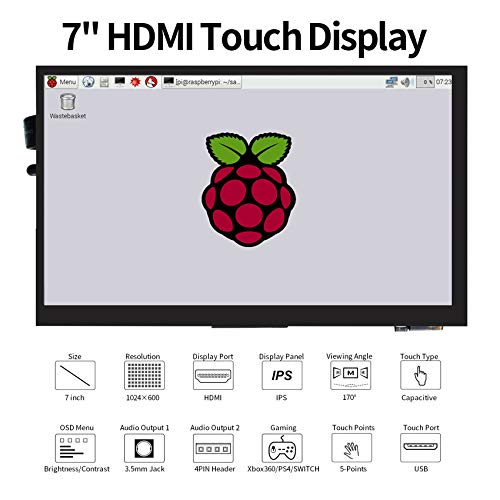

Features
Screen Size: 7 inches

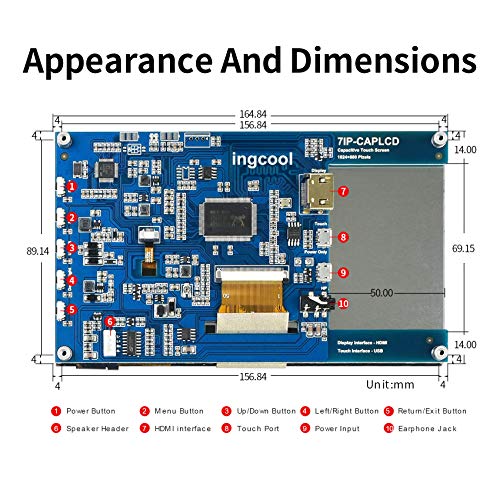

Item Dimensions: 165.0(W)*124.0(H)
High resolution: 1024×600
Display Port: HDMI / VGA

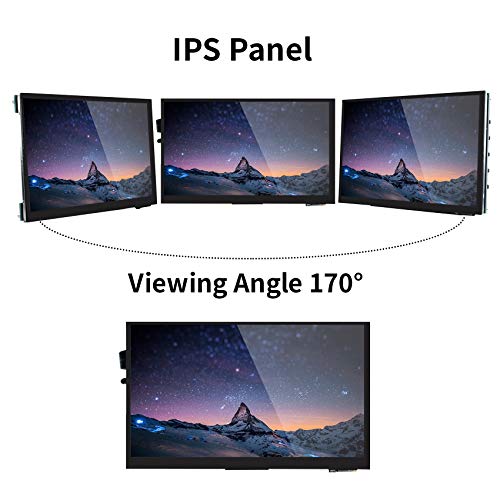

Display Panel: IPS
Touch Control: Capacitive touch
Touch Port: USB
OSD Menu: Power management/brightness/contrast adjustment, etc.
Audio Output: 3.5mm audio jack, supports HDMI audio output

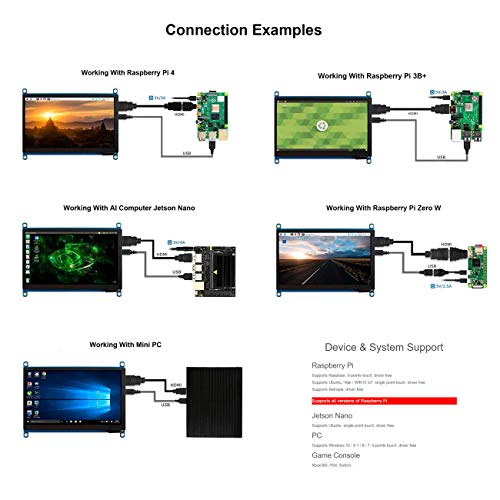

Device & System Support: Raspberry Pi 4 B/3 B+ 2B/B+/B/A, Jetson Nano,Windows 10 / 8.1 / 8 / 7, XBOX360, PS4, Switch, etc.

Note
1.When working with PC
*When the computer is connected to several different displays at the same time, only this LCD can be used to control the cursor on the main display, so we recommended to set this LCD as the main display.
*Some of PC cannot support HDMI screen Hot Plug. restart the PC can solve.
*Sometimes LCD will flicker because of undersupplying from USB cable of PC. You need to connect an external power supply (5V/2A) to DC port.

2.When working with Raspberry Pi
*Please set the resolution of the LCD by yourself, otherwise, the LCD screen will not work.

3.When working with Jetson Nano Developer Kit
*you don’t need to make software configuration, plug and play.

Development Resources
http://www.ingcool.com/wiki/7IP-CAPLCD?Amazon

Package Content
1 x 7IP-CAPLCD
1 x HDMI cable
1 x HDMI to Micro HDMI Adapter
1 x USB type A plug to micro B plug cable
1 x Trangle bracket

Voer het modelnummer hierboven in om zeker te weten dat dit past.
【High Resolution】7 inch HDMI monitor, supports 1024×600 hardware resolution, configurable by software. (up to 1920×1080)
【Widely Compatibility】Supports popular mini PCs such as Raspberry Pi, Jetson nano Developer Kit, Supports popular game consoles like XBOX360, PS4, Nintendo Switch, etc.

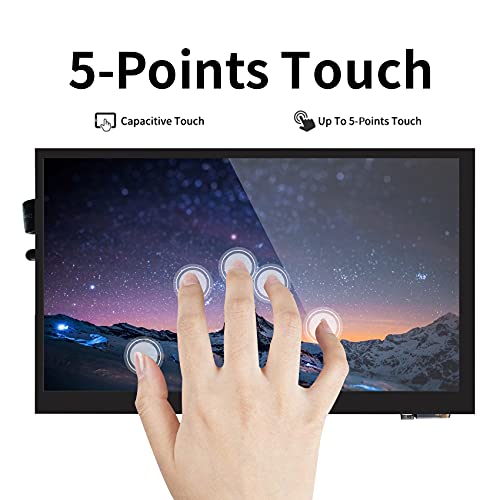

【Capacitive USB Touchscreen】Supports single touch for Raspberry Pi 4 Model B/3 B+ 2B/B+/B/A , Raspbian, Ubuntu, Windows 10 IoT, Jetson Nano, Free drive. Supports five points touch for windows system 10 / 8.1 / 8 / 7, Free drive.
【OSD Menu】Multi-languages OSD menu config buttons for adjusting backlight, display color, volume, power management, etc.
【Audio Speaker 】This 7 inch HDMI LCD has a 3.5mm audio jack and supports HDMI audio output, VGA port to support VGA devices.
