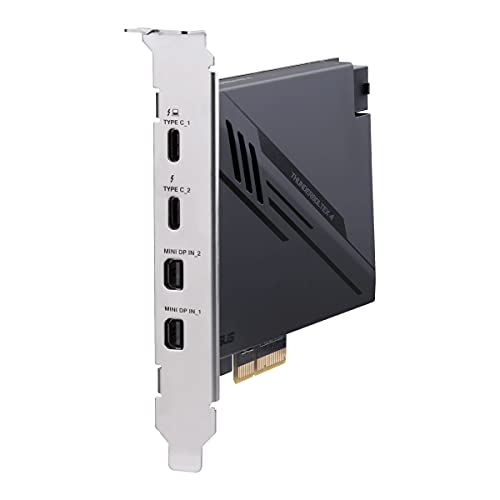

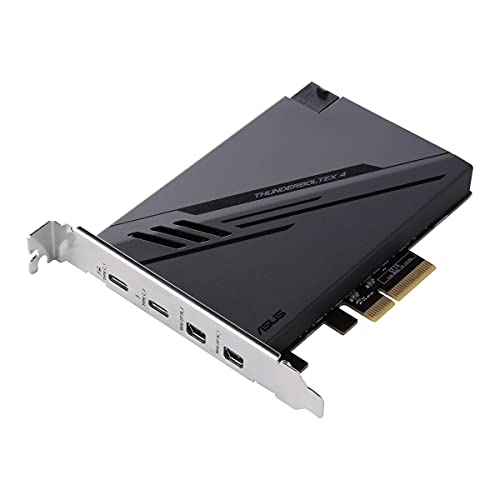

ASUS ThunderboltEX 4 – Thunderbolt-adapter – PCIe 3.0 x4 – Thunderbolt 4 x 2, 90MC09P0-M0EAY0

Asus ThunderboltEX 4 expansion card, dual Thunderbolt 4 (USB-C) ports, DisplayPort 1.4, PCIe 3.0 x4 interface

Intel-certified Thunderbolt 4 add-on card

40 Gbps bi-directional bandwidth for superfast data transfers and video output

Dual Thunderbolt 4 ports (USB-C), with support for up to five Thunderbolt devices in a daisy chain

DisplayPort 1.4 for 8K Ultra HD support

Enable blisteringly fast speeds and any-way-up connectivity

ASUS ThunderboltEX 4 is a Thunderbolt 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4 device compatibility, and DisplayPort 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C charging for laptops.

Daisy-Chain up to 5

Thunderbolt devices per port

3 devices + 2 Thunderbolt monitors

Daisy-Chain up to 5

Thunderbolt devices per port

4 devices + 1 Thunderbolt monitor

TypeThunderbolt Card

Ports2 x USB Type-C (Support Thunderbolt 4 & USB 4)- Type-C_1 up to 20V/5A, 100W quick charge, Type-C_2 up to 9V/3A, 27W2 x mini DisplayPort IN ports

Transfer Rate(s)up to 40Gbps for Thunderbolt devices

Host Interface(s)PCIe 3.0 x4

Internal Panel Interfaces1 x 6-pin PCIe power connector for quick charge function1 x USB 2.0 header1 x Thunderbolt header

Dimensions11.77 x 18.05 cm

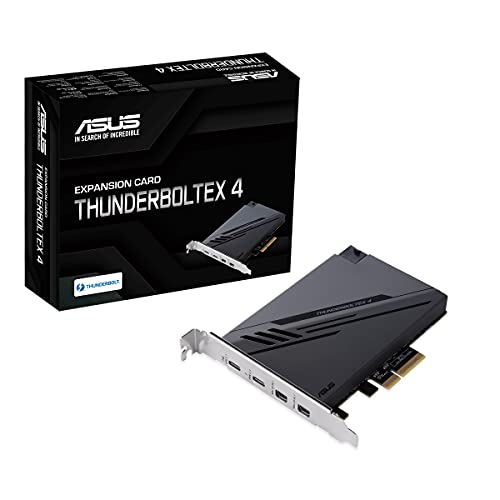

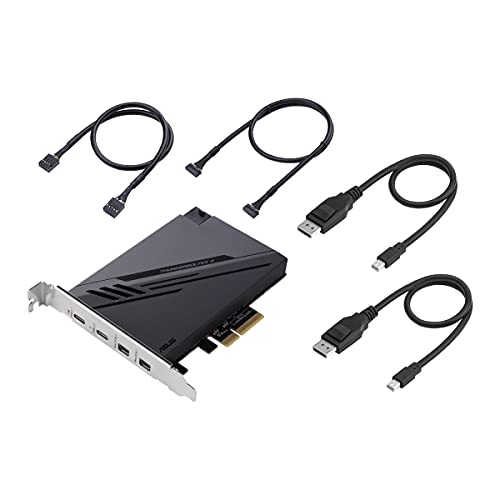

Package ContentsThunderboltEx 4 card2 x mini DisplayPort cables1 x USB 2.0 cable1 x 14-1 pin Thunderbolt header cable1 x User manual1 x Support DVD with Thunderbolt driver

Voer het modelnummer hierboven in om zeker te weten dat dit past.
90MC09P0-M0EAY0
